Chinzen ZL50G Wheel Loader
Chinzen ZL50G Wheel Loader is a project of Xuzhou Chinzen Highway Construction Machinery Co., This product is the base of other wheel loaders. In 2010 Chinzen Highway Construction Machinery Co. consigned Rhichs Studio of CUMT to design this product. Our services included styling / structure / man-machine / livery design. Chinzen ZL50G Wheel Loader had been mass production in 2010, and the series of this product were first appeared on bauma China 2010.At that time I was the head design of Rhichs Studio of CUMT.
The size of the Cab had been changed to ensure the operator has a broader perspective. The Articulation Angle of this product is ±36° and their old product is ±32°. The Articulation Angle is an important parameter for wheel loader, it means the wheel loader can work in a smaller room and it is much more smart . Because of the size of the Cab had been changed. The size of the channel also must been resized. The old Cab is made up of curved glass, but the new one is made up of polygon glass, it helps the operator has a clear vision. The polygon glass window is much more easy to made and it is also cost savings. Comfort Cab Optional air conditioning system is available for additional operator comfort.

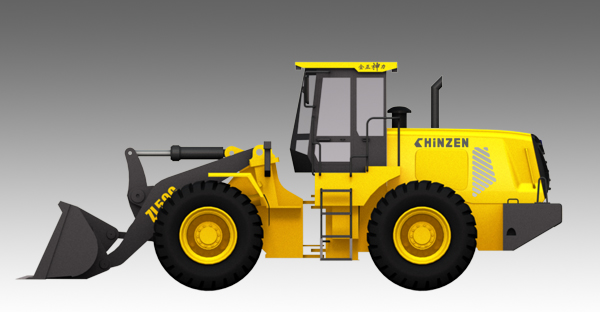

The hood is a very important part of wheel loader. For this product the styling must according to the mold to achieve. The hood also must be separated into several parts and then stamping, welding. The whole process is very complex. Compare with the hood the cab is easy to made It is spliced by the sheet metal. The back cover is also very difficult to make. The styling of the back cover must according to the injection molding to realize. For this product the livery design is simple, because of the manufacturer want to reduce the painting process. It can help them save costs.
